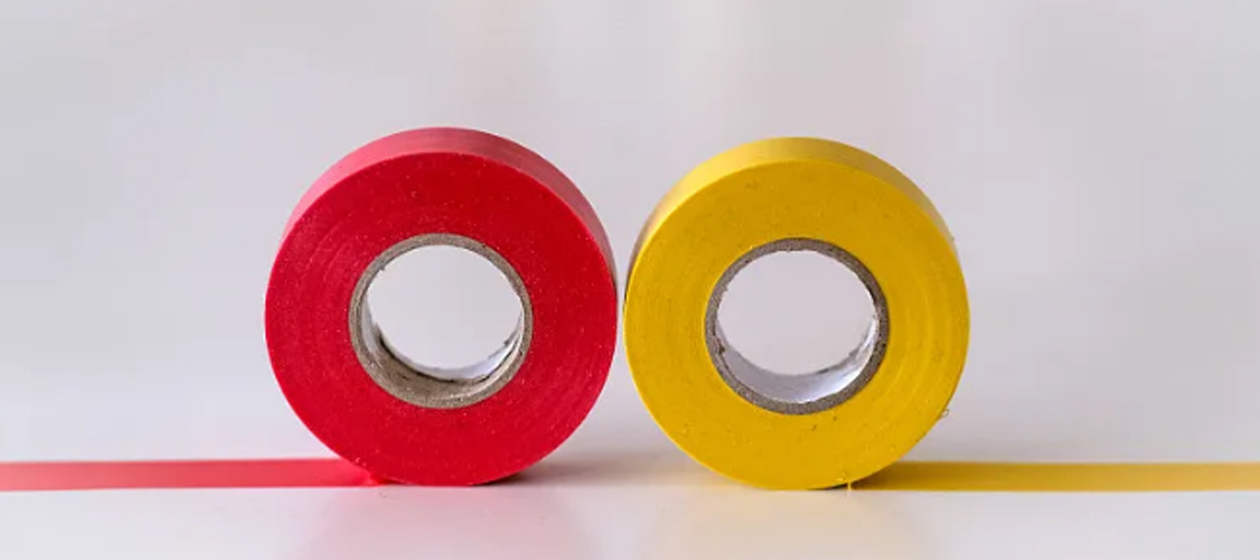

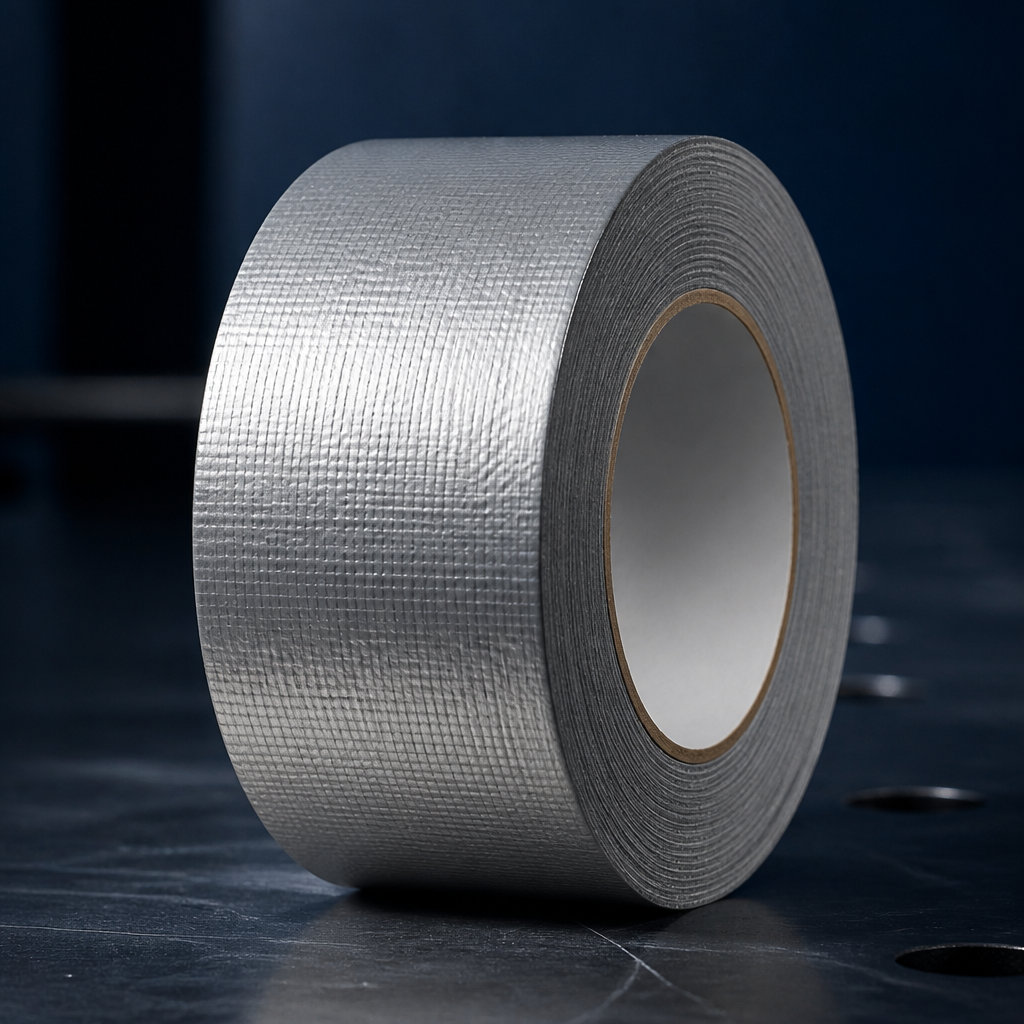

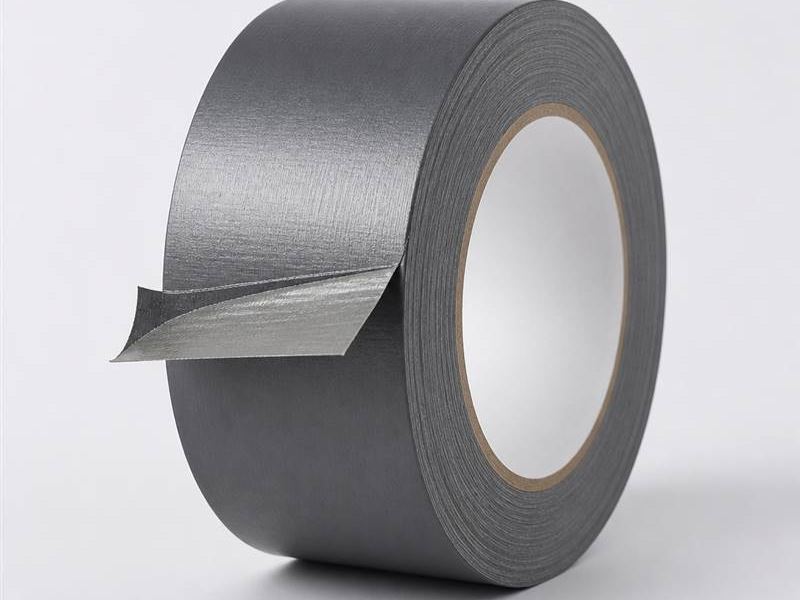

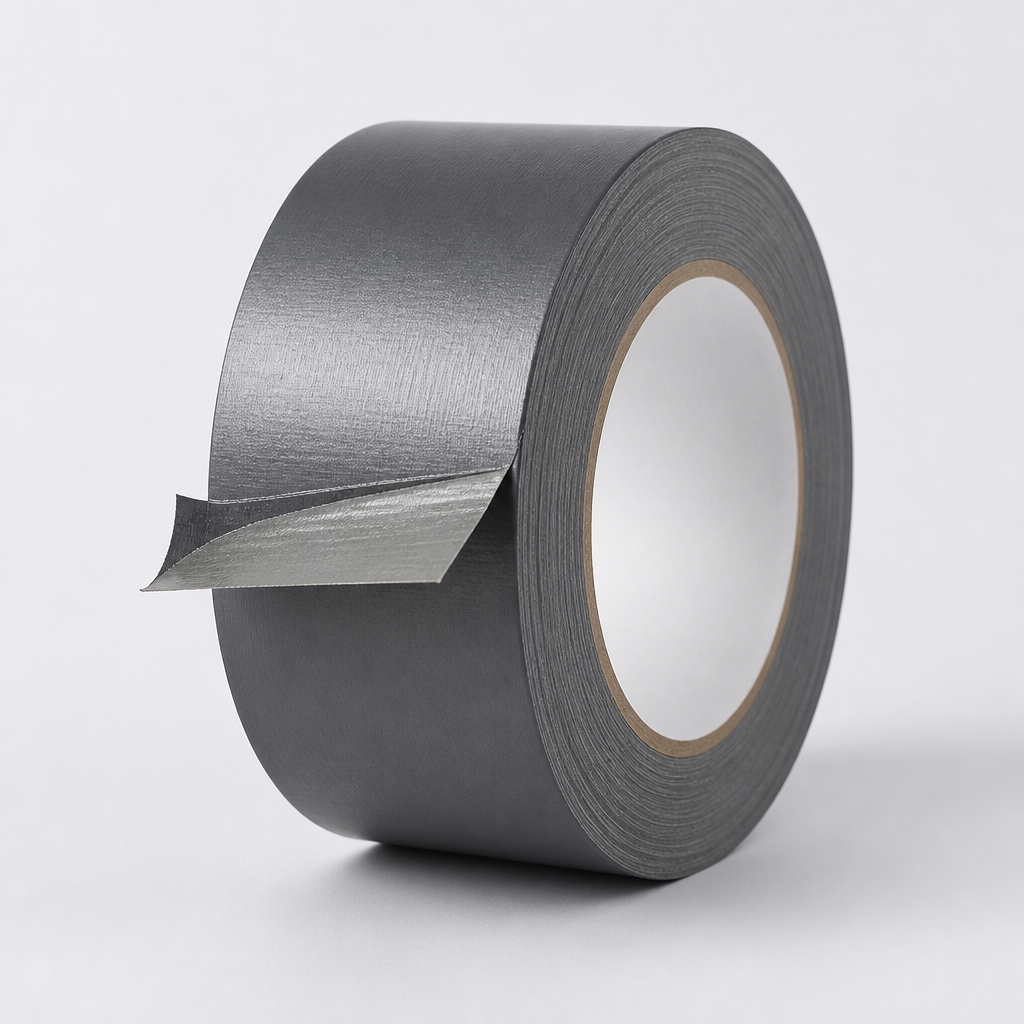

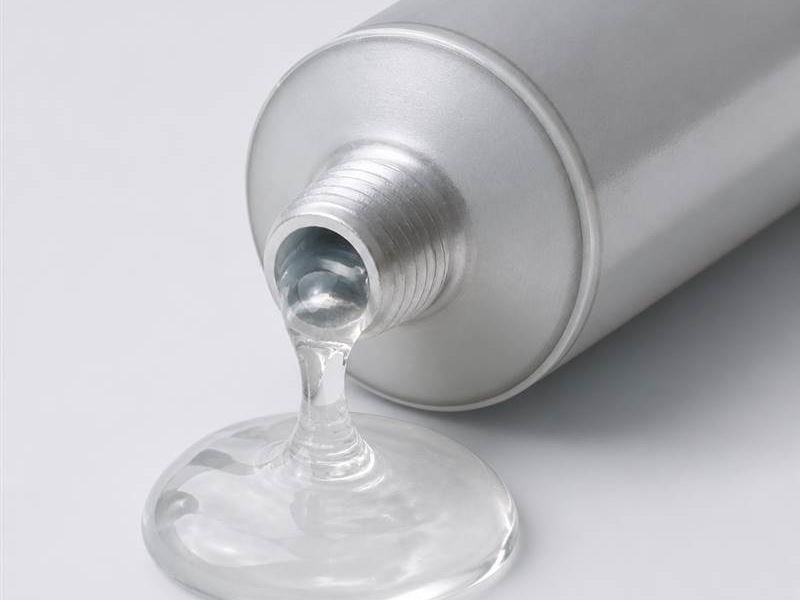

Main Products from the Company include adhesive, lubricating oil, tape, diluent, etc. Then we are agent of many world-famous brands , such as 3M, Cemedine, Dow Corning, Araldite, Konishi, Loctite …Almost Covering every kind Glue products and related production equiment that you can imagine…… View More
HOT Products
-
LOCTITE AA 3052 an amber, clear, UV-cure, modified methacrylate anaerobic adhesive
- Cures rapidly in the absence of air on metal surfaces treated with PRIMER N
- Excess product may also be cured to a solid by exposure to UV light
- Suitable for bonding glass, plastic, metals, ceramics and most materials
-

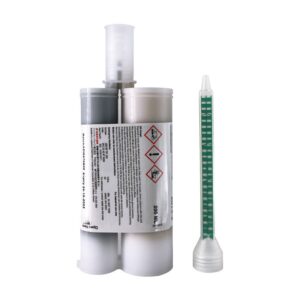

Loctite Series E-90FL, Epoxy Adhesive, Dual-Cartridge, 1.69 oz, Gray, 90 min Work Life
- Brand name : Loctite
- Trade Name : Hysol®
- Series : LOC-E-90FL
- Item Name : Epoxy Adhesive
- Short Desc : 29309 E-90FL HYSOL EPOXY GRY 50ML CART
- Packaging : 10/Case
- UPC : 00079340293090
- UNSPSC : 31201607
Loctite E-90FL Hysol® Flexible Toughened Epoxy Adhesive.
WARNINGWARNING: California Proposition 65 – Cancer and Reproductive Harm – www.P65Warnings.ca.gov
-
Loctite E-120HP Hysol High Performance Epoxy Adhesive, 50mL Dual Cartridge
- Brand name : Loctite
- Trade Name : Hysol®
- Series : LOC-E-120HP
- Item Name : Epoxy Adhesive
- Short Desc : EPOXY, 29353 E-120HP HYSOL 50ML DUAL CRT
- Packaging : 10/Case
- UPC : 00079340293533
- UNSPSC : 31201607
When fully cured, the epoxy offers superior thermal shock resistance, excellent mechanical and electrical properties and withstands exposure to a wide variety of solvents and chemicals.
-
LOCTITE DSP 190024, Acrylic, Bonding, Medium viscosity and High speed curing
TYPICAL PROPERTIES OF UNCURED MATERIAL
Specific Gravity @ 25 °C 1.12
Viscosity, Brookfield – HBT, 25 °C, mPa·s (cP):
Spindle TB, speed 10 rpm, , Helipath 18,000 to 35,000LMS
TYPICAL CURING PERFORMANCE
LOCTITE®
DSP 190024™ can be cured by exposure to UV
and/or visible light of sufficient intensity. Surface cure is
enhanced by exposure to UV light in the 220 to 260 nm range.
Cure rate and ultimate depth of cure depend on light intensity,
spectral distribution of the light source, exposure time and light
transmittance of the substrate through which the light must
pass.
Fixture Time
UV fixture time is defined as the light exposure time
required to develop a shear strength of 0.1 N/mm².
UV Fixture Time, Glass microscope slides, seconds:
6 mW/cm², measured @ 365 nm ≤10LMS -
ARALDITE 2020 two component, room temperature curing, low viscosity adhesive specifically designed for glass bonding.
Araldite®
2020
Two component clear epoxy adhesive system
Key properties • Low viscosity, water white adhesive
• Especially suitable for glass and ceramic bonding
• Suitable for clear castings and laminates
• Refractive index similar to that of glass
Description Araldite®
2020 is a two component, room temperature curing, low viscosity adhesive specifically designed for glass
bonding.
It is also suitable for bonding a wide variety of metals, ceramics, rubbers, rigid plastics and most other materials in
common use.Pretreatment
The strength and durability of a bonded joint are dependant on proper pretreatment of the surfaces to be bonded. At
the very least, joint surfaces should be cleaned with a good degreasing agent such as acetone, iso-propanol (for plastics)
or other proprietary degreasing agents in order to remove all traces of oil, grease and dirt.
Low grade alcohol, gasoline (petrol) or paint thinners should never be used.
The strongest and most durable joints are obtained by either mechanically abrading or chemically etching (“pickling”)
the degreased surfaces. Abrading should be followed by a second degreasing treatment -
KYORITSU CHEMICAL worldrock 8530S UV Hot Melt Water soluble UV Curing Adhesive For Fingerprint Sensor Foldable and Camera Module (Mobile, Automotive, CCTV
Feature
・Good adhesion to both Engineering plastics and Glasses.
・Wide range of Elastic Modulus
・Selectable cure condition 《UV only, UV + Thermal, UV + Heat anneal》
・High reliability
・High accuracy position
・Good adhesion to both Engineering plastics and Glasses.
・Wide range of Elastic Modulus
・Selectable cure condition 《UV only, UV + Thermal, UV + Heat anneal》
・High reliability
・High accuracy position
①Lib Material
・Low Moisture Permeability
・Reflowable > 260℃
・Low Outgass
・High Tg/Modulus
②Clear Molding
・Keeping good High Reliability
test
-
KYORITSU CHEMICAL worldrock 8530S New Technology of Optical Bonding Material ,Good adhesion to both Engineering plastics and Glasses.
Feature
・Flash Curing
・Cured Adhesive soluble in water quickly
・Good Adhesion to Substrate
・Hardness can be adjusted
・Available Tack-Free
Water Soluble UV Curing Adhesive
Masking for Wiring etc..
Temporary fixation for machining precision member
Water Temp.50℃ Ultrasonic Cleaning(US-20PS、ECO mode)
Washing with Water(Room temperature,a few minuets Ultra Sonic)
-
Kyoritsu Chemical worldrock XVL-90K FPC UV ,Heat anneal Reinforcement ,UV + Thermal for Camera Module , Projector and head up display
・Good adhesion to both Engineering plastics and Glasses.
・Wide range of Elastic Modulus
・Selectable cure condition 《UV only, UV + Thermal, UV + Heat anneal》
・High reliability
Optical Component Fixation material
Bonding of optical components such as lens and mirrors which has
influence by stress and distortions.
Accurate Fixation material
Bonding of components requiring high accuracy position such as Laser
elements.
Optical Bonding Material
Bonding of transparent substrates such as lens, prisms, and displays.
Sealing Material
Hermetic sealing of devices requiring high airtightness
Example:Camera lens
■C
・High accuracy position
For Camera Module (Mobile, Automotive, CCTV)
